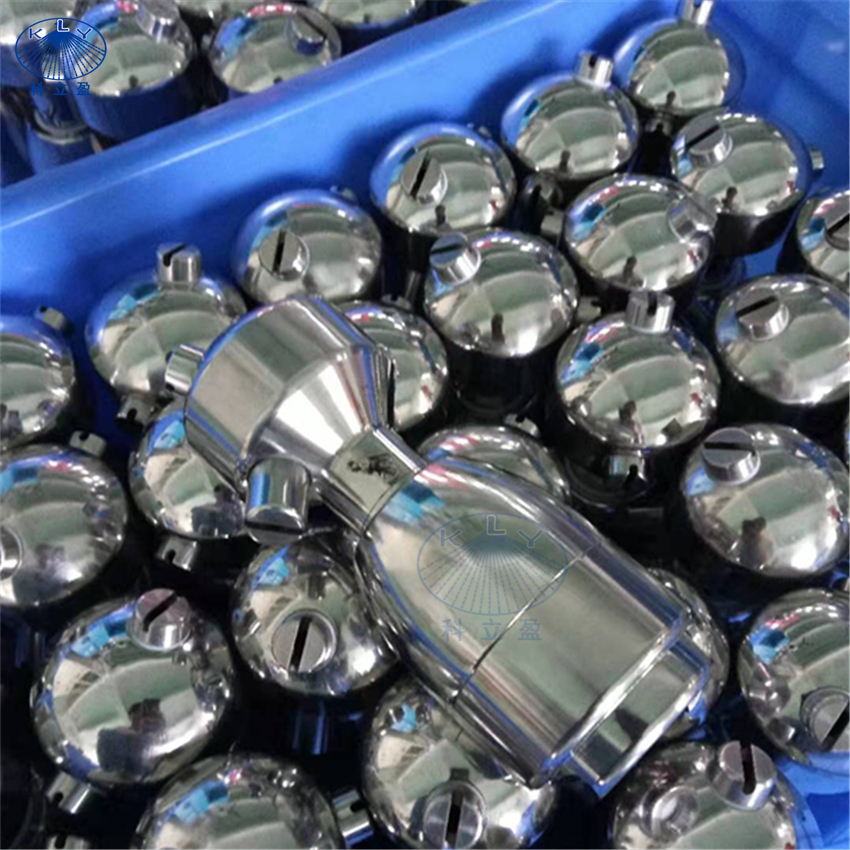

Rotating tank cleaning spray nozzle
STD high impact rotating tank cleaning nozzle，chemical tank cleaning equipment
Technical data of STD high impact rotating tank cleaning nozzle：
| Manufacturing materials： | 316L SS | Lubrication： | Self lubrication by cleaning fluid |
| Working pressure： | 3-10 bar | Recommended pressure： | 4-7 bar |
| Maximum operating temperature： | 95°C | Maximum ambient temperature： | 140℃ |
| Cleaning angle： | 360° full coverage | Cleaning diameter： | 5m |
Cleaning cycle： | 4-8 minute | Water inlet： | 3/4“FR BSSP female，1”BSPP female |
| Tank opening： | 100mm | Technical highlights： | Design of independent reducer |
| Customizable： | Explosion proof, high temperature, oil resistant | Weight： |
Tank cleaning nozzles design feature:
Driven by cleaning fluid, where the ball of the unit rotates at a slow speed, ensuring effective impingement of the cleaning solution on the interior walls. KC5 tank cleaning nozzle offer improved cleaning over traditional rotary spray nozzle
High impact flat jet, 360 degree spray, thoroughly clean
Internal gear reduction make it work more stable
Application:
STD rotary tank cleaning nozzles are well suited for small to medium sized tanks, such as dairy , food, pharmaceutical, beer, chemical, industrial fermentation industry and the need for high impact cleaning occasions.
